GLASS DOOR AHNDLES OGC-77

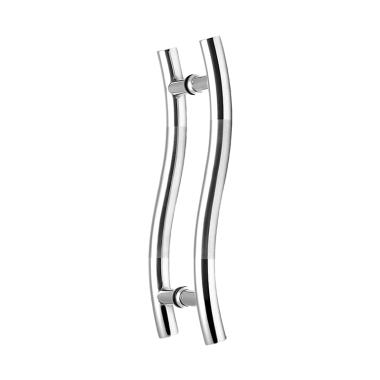

Glass Door Handle S Type

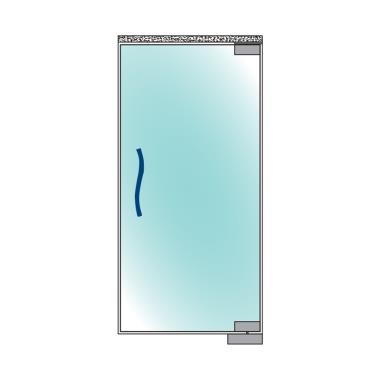

  • Pull Handle With Back to Back installation on Glass Doors.
  • Gaskets to prevent the contact between glass and metal.
  • Supporting washer with raised bevelling on the outer surface.
  • Grub screws kept out of sight
  • Material:-Stainless Steel Grade 304.
  • Finish: Double Finish of PSS/SSS & Single Finish of SSS
SKU: Categories: Glass Door Handles

Share:

OGH-77-25x350MM SSS
S Type Handle
 Finish :   Size :

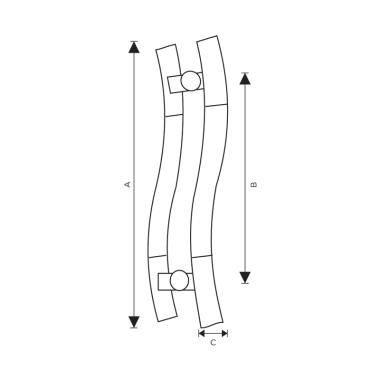

Product Code
Overall length of
Handle (A)		Centre to centre of
Hole (B)		Handle diameter
(C)		Hole diameter
for glass
OGH-77-25mmx355mm350mm255mm25mm12mm
OGH-77-32mmx350mm350mm250mm32mm12mm
OGH-77-25mmx475mm475mm300mm25mm12mm
OGH-77-32mmx475mm475mm305mm32mm12mm
OGH-77-32mmx600mm600mm420mm32mm12mm
