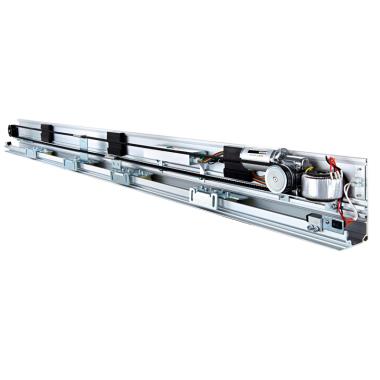

Ozone Automatic Sliding Door System OZOM-111-P-PLUS-4.2-Meter-SLV-AN

Name: Ozone Automatic Sliding Door System OZOM-111-P-PLUS-4.2-Meter-SLV-AN
Brand: Ozone
SKU: 14116
Availability: InStock

₹222,076.00

OZOM 111P. PLUS -4.2 MTR

Suitable for double doors
Maximum weight per door-120kg
Maximum height per door-2700mm

Engine case height: 115mm
Self-learning microcomputer processing controller
Extra slim type track
24V DC 100 watt brushless motor with built-in rectifier
Adjustable parameters

Track length option:

4.2mtr / 6mtr

Accessories:

2 remotes are provided

Ozone auto door also known as automatic door or sensor door are the new version of ozones automatic series which now comes with improved version of motor and sensor. An automatic door sliding door operator or automatic sliding door operator is a electronic unit that works as a sliding door for walking customer. In this system door slides automatically to sides using a wheels, timing belt and motor. It opens the door automatically, and wait for some time then closes automatically.

OZOM 111P. PLUS -4.2 MTR

Suitable for double doors
Maximum weight per door-120kg
Maximum height per door-2700mm

DOUBLE DOOR 120KG PER DOOR MAX HEIGHT 2700MM

No	Particular	Qty	Rate	Total
1	OZOM 111P. PLUS 4.2 MTR	1	173955	173955
2	OZOM PR-11 1MTR ALUMINIUM CLAMP	2	7920	15840
3	OZOM-ACC-11 ZS SENSOR & SAFETY BEAM	1	18190	18190
4	OZOM AC-99 MICRO WAVE SENSOR	1	9695	9695
5	OZOM FG-11 BOTTOM GUIDE	2	835	1670
6	OPS-SL-BR-22N BRUSH SEAL	2	1029	2058
7	OPS-4 PVC SEAL	2	334	668
			Grand Total	222076
