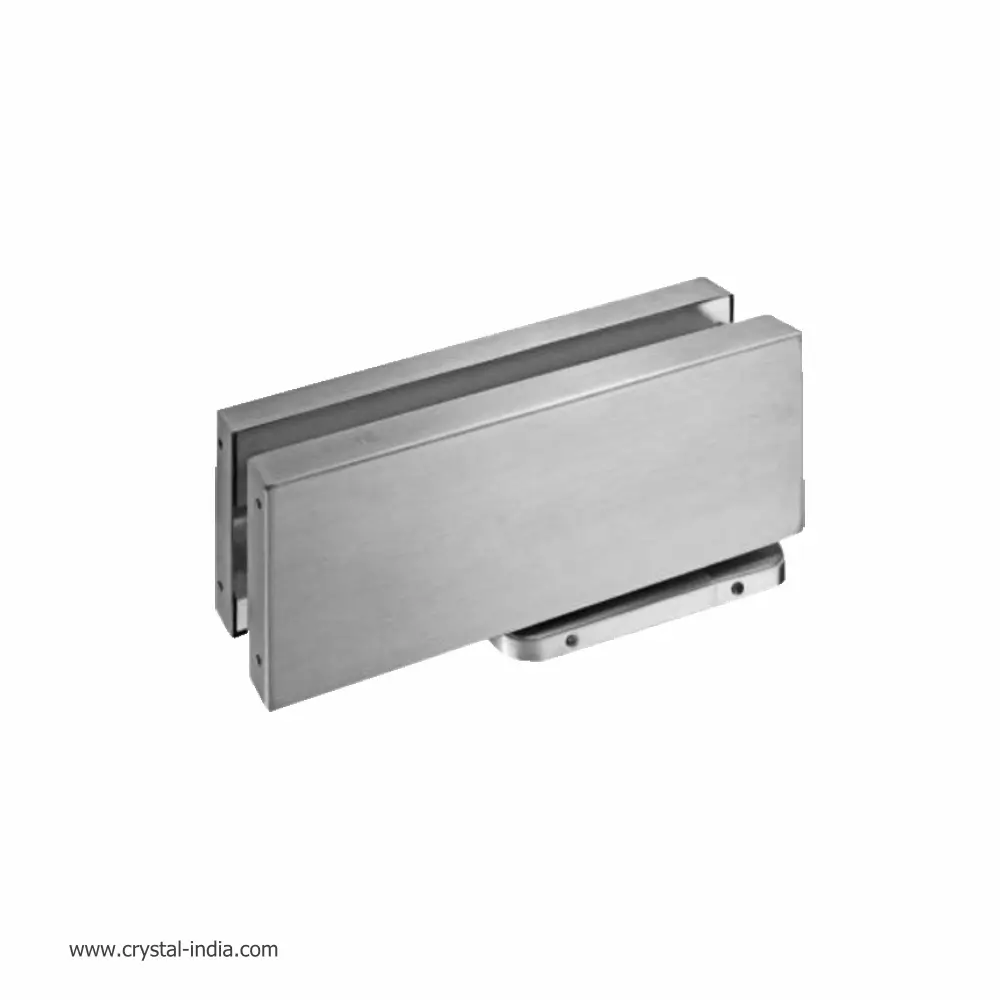

Ozone OCFH 135 – Concealed Floor Spring for Glass Door

  • Requires No Digging Or Cutting Of Floor,Quick and easy installation with just 4 fasteners
  • Suitable door weight: Max 100kg.
  • Suitable door width: 750~1250mm
  • Suitable door thickness: 10~15mm
  • Maximum opening 150 degrees and controlled 135 degrees
  • Durability-500,000 Cycles Tested
  • Suitable for Fire/Smoke Doors upto 40 min, Testing done by Intertek as per EN 1634-1:2008
  • Ambient temperature: -20 degrees to +50 degrees
  • Hold open 90 degrees (Non Hold Open also available)
  • Compliance With EN 1154
  • Finish: SSS/PSS

Share:

Ozone OCFH 135 – Concealed Floor Spring for Glass Door

Ozone OCFH- 135 is the concealed floor spring for glass door  under the brand name of ozone and it come in the polished stainless steel, and Satin Stainless Steel finish. These concealed floor srpings are manufactured as per the standard compliances with EN 1154. Patch plate  length of this model is 251mm, patch plate Thickness is 45mm and patch plage width is 81mm.



These are suitable for a door weight of 100 kg and for a width of 750mm to 1250mm. Glass thickness must be 10 to 15mm.
